Tri-Dimensional Composites Drainage Network - Foundation Reinforcement

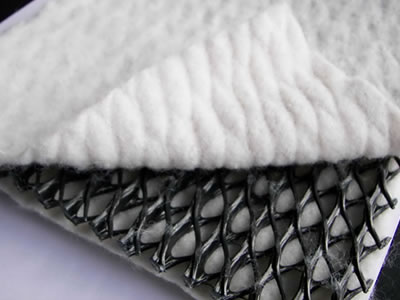

A piece of three dimensional composites drainage network sample with part white geotextile unfolded is lying on the ground.
TDCDN-1: Three dimensional composites drainage network.

Three dimensional composites drainage network is a new type of drainage geotextile material. It is one three-dimension geonet composited with two needle-punched non-woven geotextiles. Three dimensional composites drainage network consists of a tri-dimension thick vertical rib, and a inclined rip on the top and bottom. Double sided adhesive seepage geotextiles form a "filtration - drainage - ventilation - protection" overall performance, and can replace the traditional sand and gravel. Its pore maintenance system can drain underground water quickly, block the capillary water under high load in construction, keep certain thickness and provide good water conductivity property. At the same time, it can also play the role of isolation and foundation reinforcement. Mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage works, and the effect is remarkable.

Specifications:

  • Product name: three dimensional composites drainage network.
  • Material: high density polyethylene.
  • Length: 30 m, 40 m, 50 m or at your requests.
  • Width: 2 m - 4 m.
  • Thickness: 5 mm - 8 mm.
  • Non woven geotextile unit weight: 200 g/m2.
  • Mass per unit area: 700 g/m2, 1000 g/m2, 1300 g/m2, 1600 g/m2.
Three dimensional composites drainage network technical index
Item Drainage network core Units Value
1 Unit weight g/m2 750 1000 1300 1600
2 Thickness OV=20KPa mm 5.0 6.0 7.0 7.5
3 Hydraulic conductivity m/s K × 10 - 4 K × 10 - 4 K × 10 - 3 K × 10 - 3
4 Elongation % <50 <50 <50 <50
5 Tensile strength (core network) kN/m 8 10 12 14
6 Geotextile g/m2 Heavier grades of geotextiles can be bonded to geonet on request.

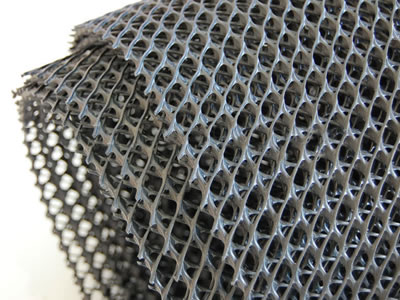

An enlarge picture about black three dimension geonet roll.
TDCDN-2: The inner structure of three dimensional composites drainage network.

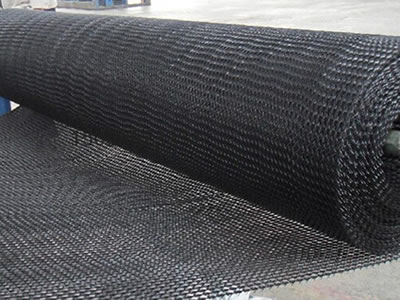

Black three dimension geonet roll on the produce machine.
TDCDN-3: Black three dimension geonet roll is in production.

Features:

  • Keep long time stable water conductivity.
  • High tensile strength and shearing strength.
  • Anti-corrosion, anti-acid and long service life.
  • It can bear compression loading over 2000 KPa.
  • Excellent drainage function and long time high press loading.
  • Construction convenient, shorten the construction period and reduce costs.

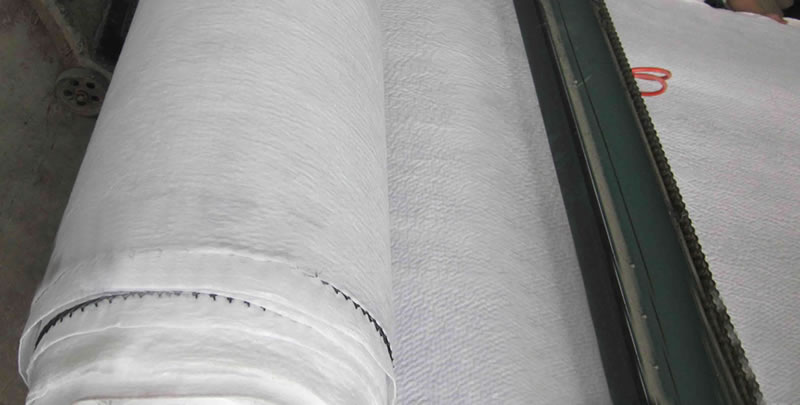

Three dimensional composites drainage network roll is produced by the machine, and there is a people beside the machine.
TDCDN-4: Three dimensional composites drainage network is on production.

Applications:
Three dimensional composites drainage network with excellent drainage function is widely used in many places, such as:

  • tunnel drainage.
  • landfill drainage.
  • railway drainage.
  • retaining walls drainage.
  • highway roadbed drainage.
  • underground structure drainage.
  • garden and playground drainage.

Packaging:

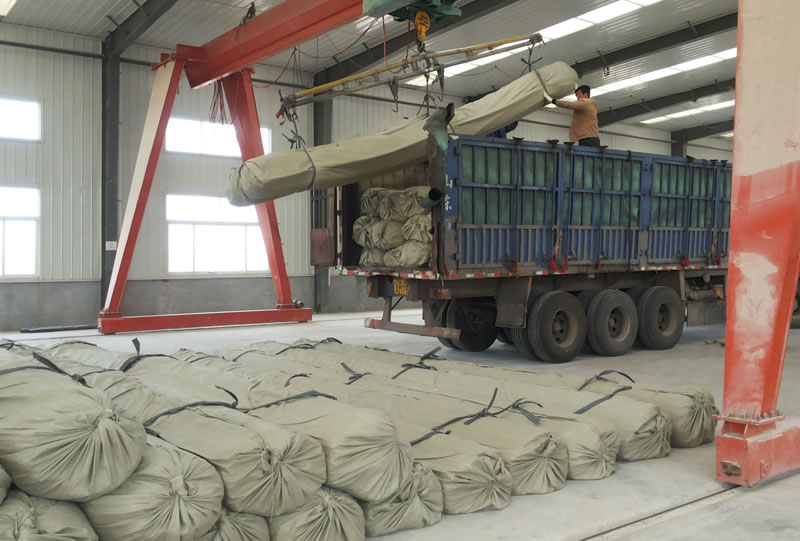

The worker is putting the packaged three dimensional composites drainage network rolls on the truck through the machine.
TDCDN-5: Three dimensional composites drainage network rolls can be packaged with woven bags.
